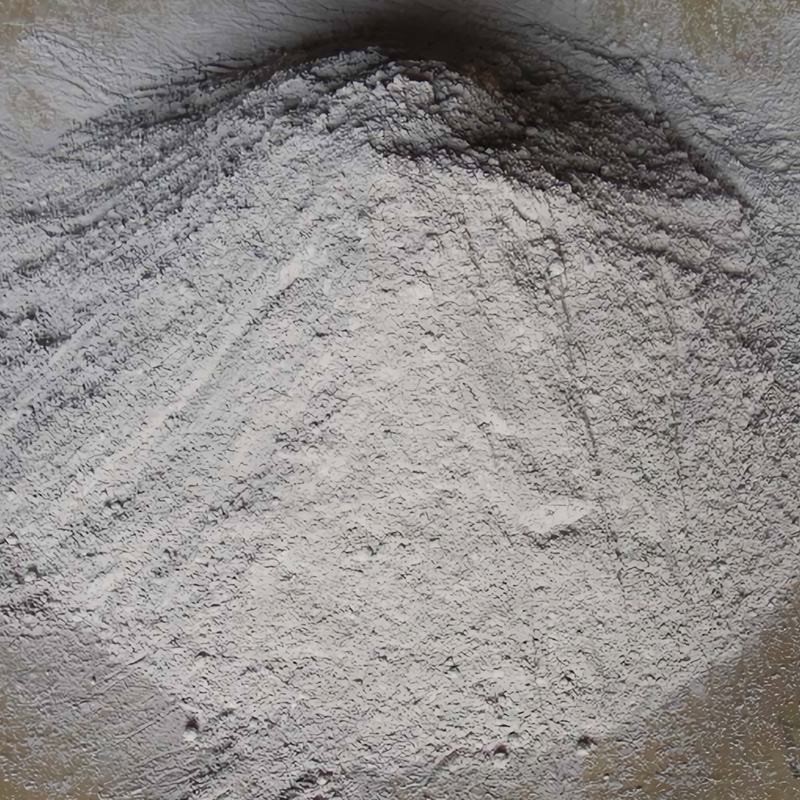

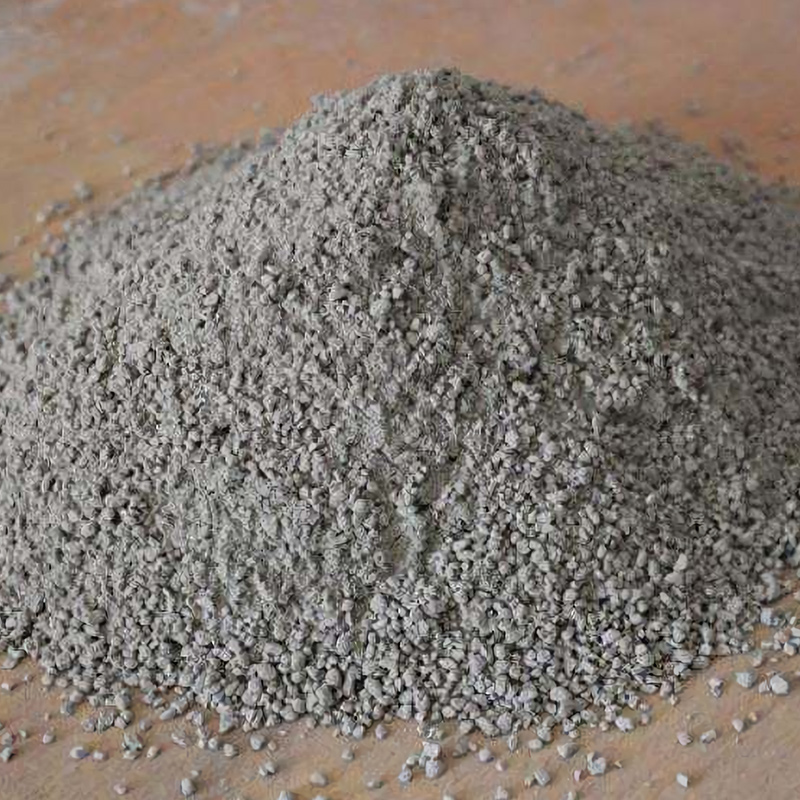

Polystyrene Granule Mortar
1.Thermal insulation king: thermal conductivity ≤ 0.065W/(m-K), 40% energy saving compared with traditional mortar, preferred for external wall/roof insulation.
2.Lightweight and anti-seismic: dry density ≤230kg/m³ (1/5 of cement mortar), reducing building load and improving seismic performance by 50%.
3.Anti-cracking: glass beads + fiber reinforcement, compressive strength ≥ 0.8MPa, anti-cracking over ordinary plaster layer 3 times.
4.Ready-to-mix and ready-to-use: single-component with water is directly coated without the aid of mesh cloth, construction efficiency is increased by 60%, and the comprehensive cost is reduced by 35%.
5.Eco-breathing: 30% regenerated polystyrene particles + inorganic cementation, China Green Building Materials three-star certification, carbon emission reduction of 1.2kg/m².
6.Fireproof and weatherproof: Class A fireproof + 50 times of freeze-thaw cycle test, -40 ℃ ~ 100 ℃ extreme climate without chalking and shedding
Product introduction:
Polystyrene particle mortar is a kind of lightweight thermal insulation building mortar, which is compounded by cement, recycled polystyrene granule (EPS), polymerized adhesive powder and additives, and has the advantages of thermal insulation, anti-cracking and anti-seismic, and convenient construction. Its internal porous structure effectively reduces the weight (≤300kg/m³), and improves the sound insulation and fireproof performance (B1 class flame retardant), suitable for building energy-saving renovation, roof floor heating leveling and other scenarios, it is a new type of green building materials that take into account both environmental protection and performance.
Product parameters:
Dry density | ≤300kg/m³ |
Compressive strength | ≥0.5MPa (28 days maintenance) |
Thermal conductivity | ≤0.08W/(m-K) |
Fire resistance grade | B1 grade (GB8624 standard) |
Construction thickness | single layer ≤ 30mm, total thickness up to 100mm. |
Product application:
1.Exterior wall insulation system: replace the traditional insulation board, directly coated to form a continuous insulation layer, avoiding hot and cold bridges;
2.Roof insulation and leveling: lightweight characteristics to reduce the load on the building, suitable for pitched roofs or floor heating protection layer;
3.Indoor partition wall and old house remodeling: filling the wall cavity or renovating the wall surface to improve sound insulation and thermal comfort;
4.Pipe shaft wrapping: fire retardant properties are suitable for pipe insulation and fire protection barrier construction.
Packaging and shipping:
1.50kg/bag moisture-proof woven bag, with independent polystyrene granule package inside (need to unpack and stir before mixing);
2.Support bulk tanker transportation, stacking height limit ≤ 6 layers, shelf life of 4 months in cool and dry place.

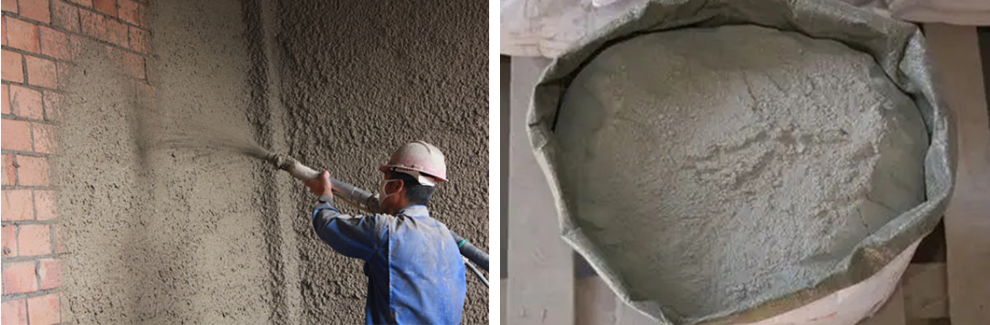

Installation process:
1.Substrate treatment: clean up the substrate, repair cracks, spray interface agent to enhance bonding;
2.Mixing and stirring: according to the water-cement ratio (about 1:1) mechanical mixing for 3-5 minutes to uniform slurry;

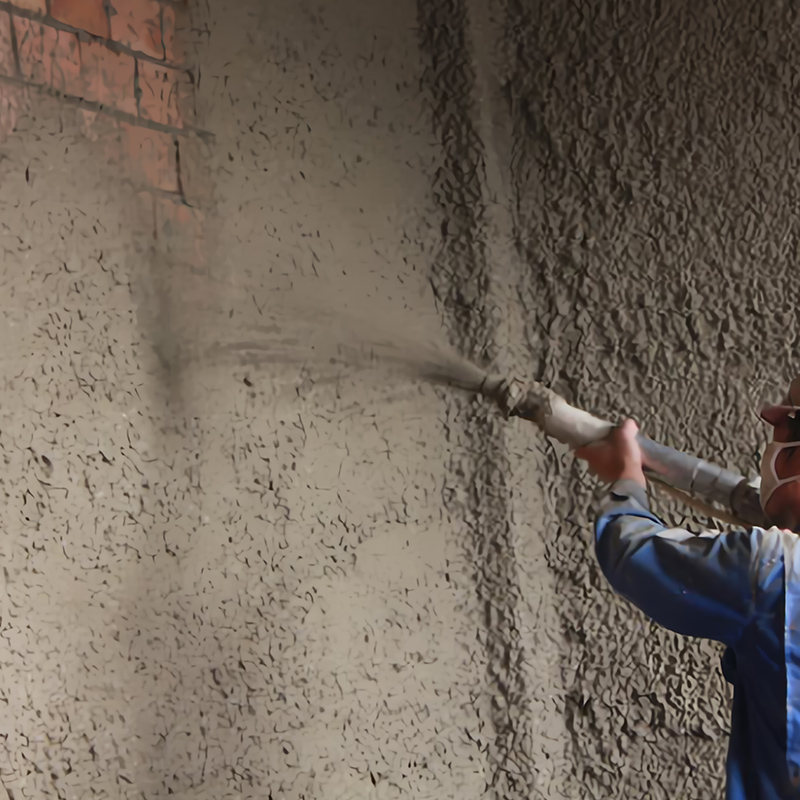

3.Layered coating: 2-3 times construction, each layer thickness ≤ 30mm, interval of 6 hours or more;
4.Surface finishing: the last scraping and compaction, natural maintenance of 3-7 days to finish layer construction.
Company Strength:
1. As a professional manufacturer of plastering mortar, we have modern production lines and strict quality control system:
2. Own factory: equipped with fully automatic batching system and dry mortar production line, with a daily capacity of 500 tons;
3. Complete certification: passed ISO9001 certification, green building materials certification, in line with GB/T 29906 standard;
4. R&D support: joint university laboratories continuously optimize the formula and provide OEM customized service;
